It can be accessed via the mobile app or Ess Cloud if your account is setup as an installer account rather than a user account. But if your installer has used their account to access your inverter, you'll have to ask them to release it and they'll then lose access so may not allow this.

I don't understand why you think you need to turn your system off. At all times the inverter is on, while there is either (or both) PV or batteries with some charge, the inverter should be powering the house. The grid draw of circa 25W is normal and expected, the inverter, unless exporting, needs to ...

Added an external DC isolator for the PV panels as I wasn’t happy the DC cables go directly to the inverter, and whilst doing that I added DC surge protectors too.

Something not right there. You shouldn't be recharging from the grid during the day. Day discharge if there's no solar and recharge during the small hours on cheap rate, else there's no point recharging at all from the grid.

I have an RCBO in the dedicated CU for the grid supply to the inverter, which trips when the changeover switch is operated. My diagram is in post 6. I incorrectly stated I have an RCD. I'm wondering why I should need an RCBO, or any RCD type device on this circuit, as no resident at the property ...

Now solved. For the benefit of others who may be in a similar situation: Having spoken to my solar company, who had my site setup in their agent account in Fox Ess Cloud, this explained why I could not bind it to my installer account in Fox Ess Cloud, as a site can only bind with one account. My ...

I forgot to add I have a MyEnergi Eddi and a Zappi too.

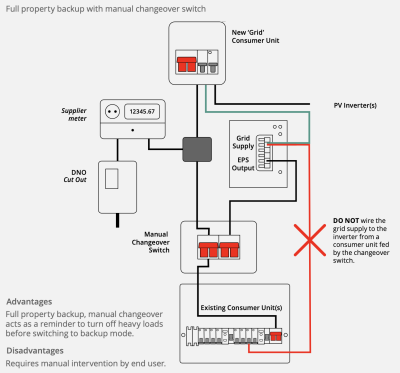

This is the setup I've wired for EPS operation in the event I want to run in Island Mode or during a grid outage:
When the changeover switch is operated, the RCD for the grid mains supply to the inverter will trip. Your above explanation seems fitting.

Thanks for the info Will. I created an Installer account, but when I try to bind the user account to it I get the error: "41813-The account has joined other organizations" I presume this is because it is bound to the installer or agent account of the company who installed my equipment already? And ...

Using the Fox ESS Cloud access, I can see and monitor my system, I can set the force charge options and times. But I have no other access to set the system parameters. I presume this is because my account is an End User account? How can I get elevated access, presumably I need to have an installer ...

Hi,

I've had my PV system installed, it's up and running, very happy with it.

H1-6.0-E Hybrid inverter
7.1kWp panels (18, with Tivo optimisers)
17.4kW Energy Cube battery (1x ECM2900 + 5x ECS2900)

It's wired for whole house EPS in the event of a grid outage with a manual changeover switch.
