Are these spikes normal

Post Reply
Jpk
Posts: 6
Joined: Fri Aug 02, 2024 10:40 pm

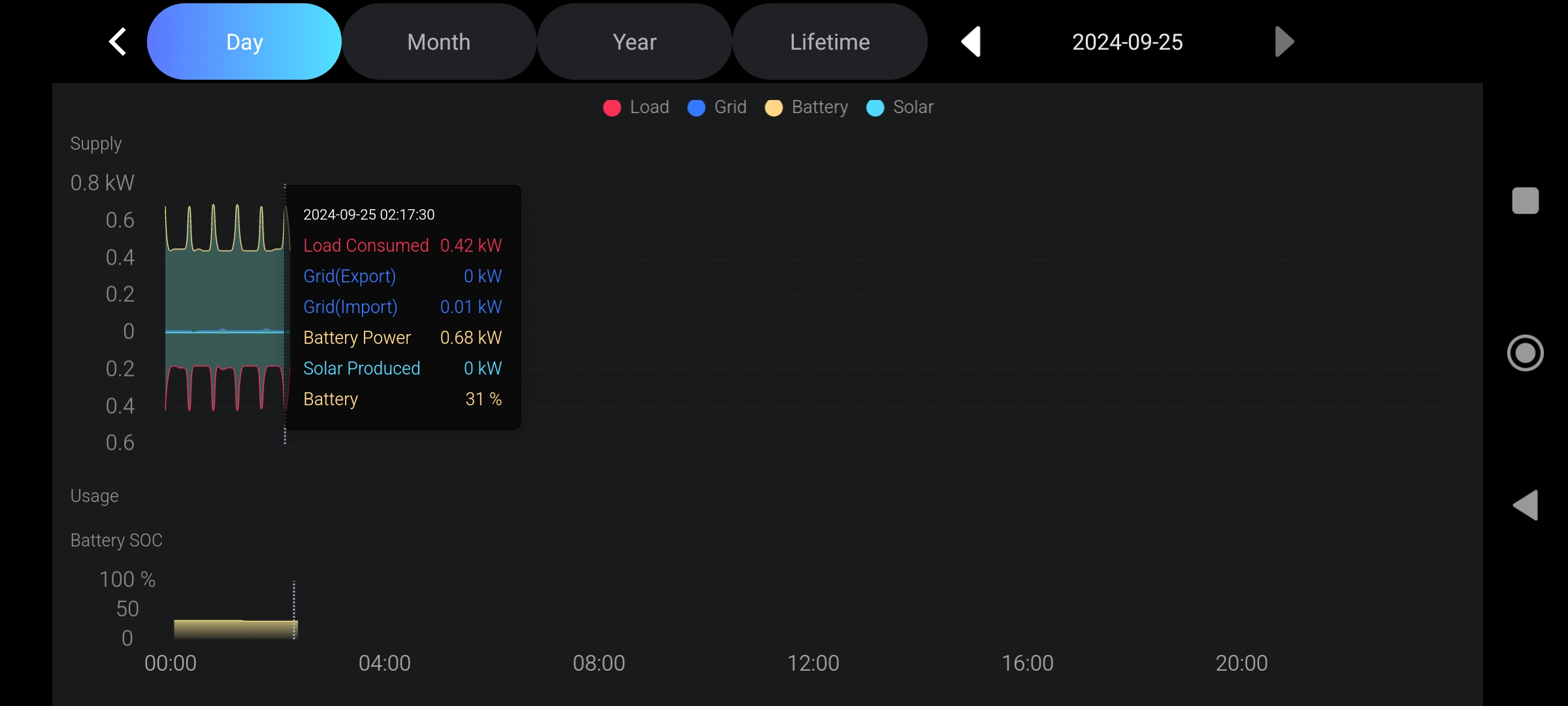

Hi can someone advise me if these energy consumption fluctuations are normal. The screenshots are taken when there's no loads on at all and the battery isn't currently charging but the same fluctuations occur all day regardless of charging/discharging Image
Attachments
Dave Foster
Posts: 1298
Joined: Thu Oct 13, 2022 7:21 pm

That looks like a small appliance turning on and off fairly regularly, it's only small maybe 150W - do you have an aquarium ?
User avatar
Will
Site Admin
Posts: 262
Joined: Thu Oct 13, 2022 5:56 pm

I'd say fridge/freezer or aquarium heater also
Community Admin / FoxESS Elite Professional

Buy me a coffee or Book a zoom meeting for remote consultancy

FoxESS Tri Inverter Installation
2 x KH Series Inverters
24 x HV2600 (62.4kWh)
32 x 490w across 4 arrays
Dual Tesla Household
Heatpump & Low Carbon Housebuild
Jpk
Posts: 6
Joined: Fri Aug 02, 2024 10:40 pm

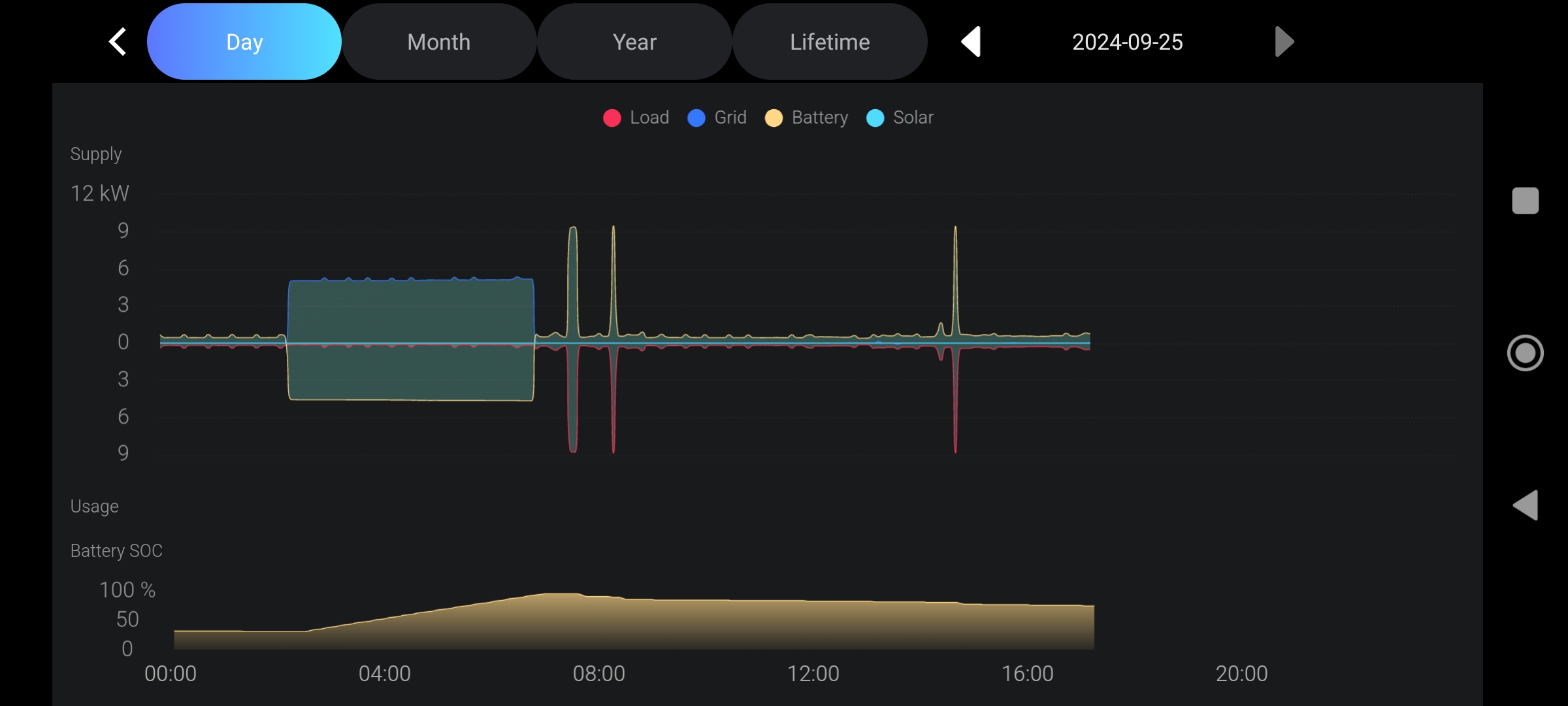

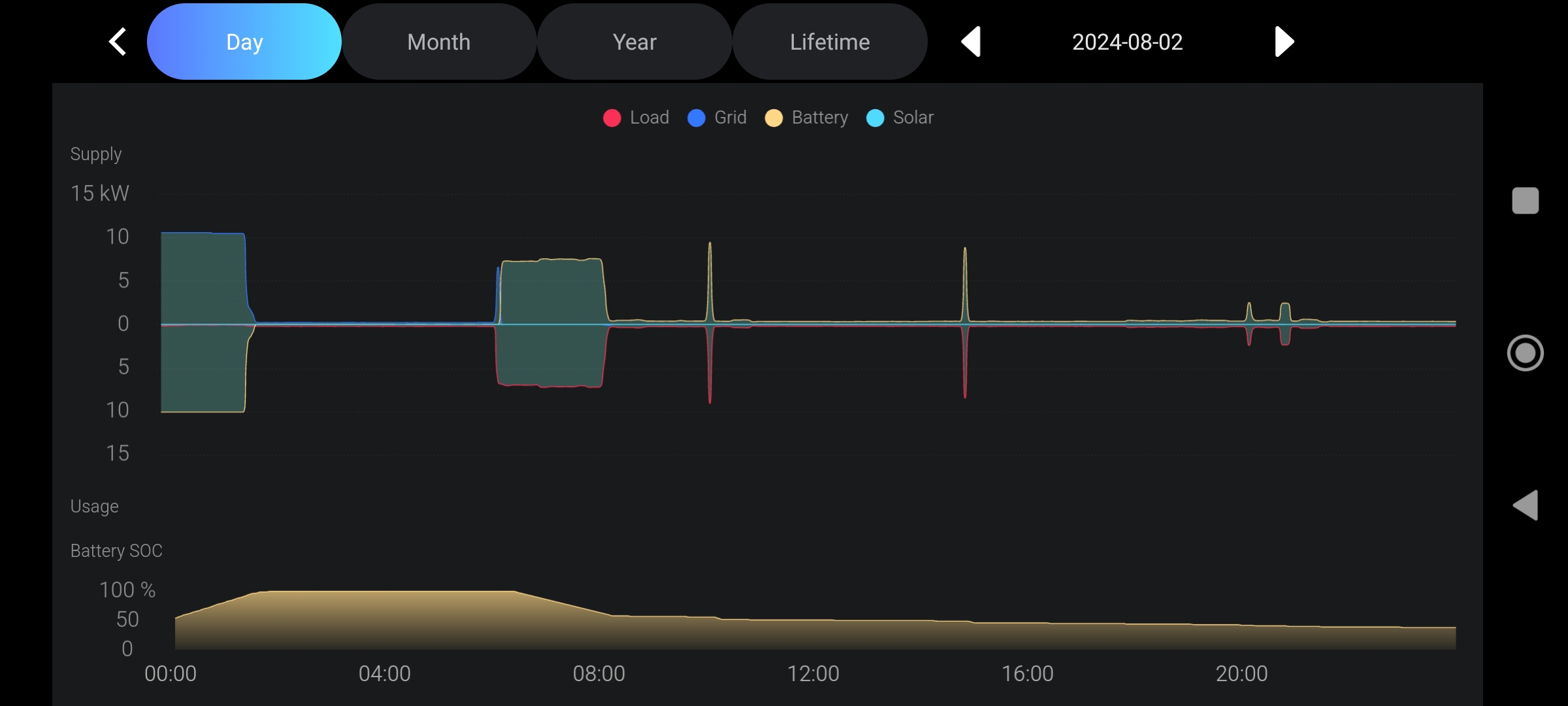

I do have an aquarium and maybe since it's getting generally cooler then heater might be cycling but it was still doing it during our last warm spell. As you can see from the 2 new screenshots, one for today and the other shortly after my installation, it didn't used to happen which is why it had me thinking. As long as it's nothing which points to an iffy installation or hardware/BMS issue I won't fret too much
Attachments
User avatar
Will
Site Admin
Posts: 262
Joined: Thu Oct 13, 2022 5:56 pm

I would turn on a high load like an oven and test that the load sensing via the ct is correctly working.
Community Admin / FoxESS Elite Professional

Buy me a coffee or Book a zoom meeting for remote consultancy

FoxESS Tri Inverter Installation
2 x KH Series Inverters
24 x HV2600 (62.4kWh)
32 x 490w across 4 arrays
Dual Tesla Household
Heatpump & Low Carbon Housebuild
Dave Foster
Posts: 1298
Joined: Thu Oct 13, 2022 7:21 pm

Just FYI i’ve also got an aquarium (with 2 heaters), the smaller one (200W) maintains the temperature and the bigger one (400W) does the leg work in winter.

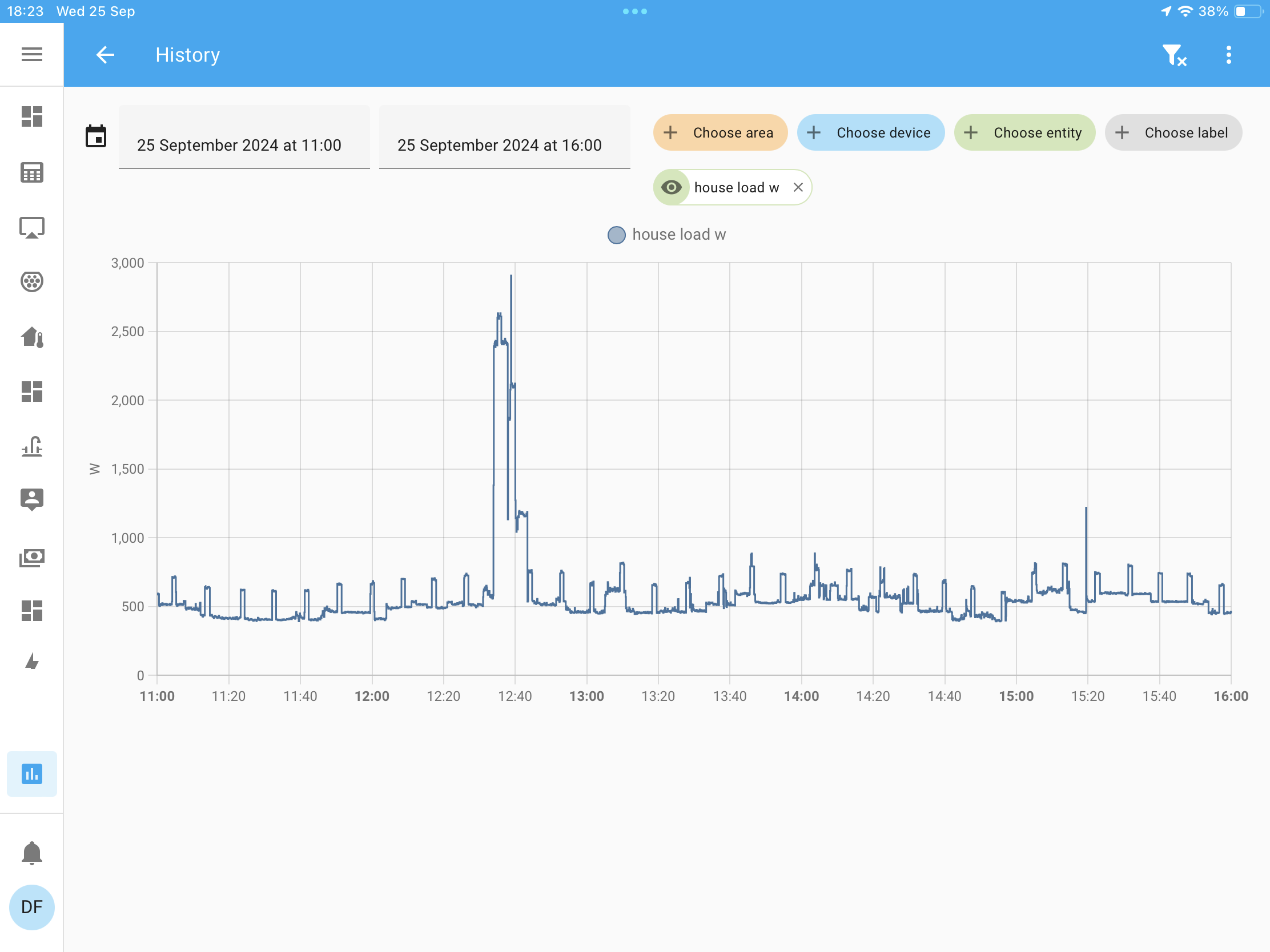

This is my trace taken with home assistant which shows the regular heartbeat from the heater, on the warmer days of summer it obviously doesn’t cut in as much.
