Yep, it was the timing. All sorted!!

Further to this, got system sorted for not charging off the grid but now I’ve got the problem of it inverter still drawing power from the grid when there is plenty of battery. I thought the self use work mode should use the battery first.

Thanks for your help, hopefully that’s it sorted!

I don’t have an EV charger so shouldn’t be an issue. There was no room on the existing consumer unit so another was installed when we had the new equipment fitted.

Just checked the CT clamp and I think its incorrect. See pictures of before and after for where I think it should be. Please correct me if I'm wrong! The real time data looks good now.

It’s a new install, I’ve had issues with the realtime data showing the power flow going from my house but sometimes it’s ok. At the moment we aren’t using almost 7kw. I did try previously to switch the ct clamp around and that made the realtime data look even worse.

It’s a H1 3.7-e inverter. Installed inside so not a low temp issue. Work mode set to self use. Min SoC is set to 20% for on/off grid. Can see m: #### s1: #### s2: #### in the battery ver about info.

Just checked the setting on the app coincide with the actual inverter and they do.

Hi,
Just installed a BMS and 2 x Mira 25 batteries. When powering on they are charging off the grid. It’s dark outside and I’ve disabled charge from grid on the FoxCloud app. Any help very much appreciated!

H1-3.7-E
Mira BMS
2 x Mira HV25’s

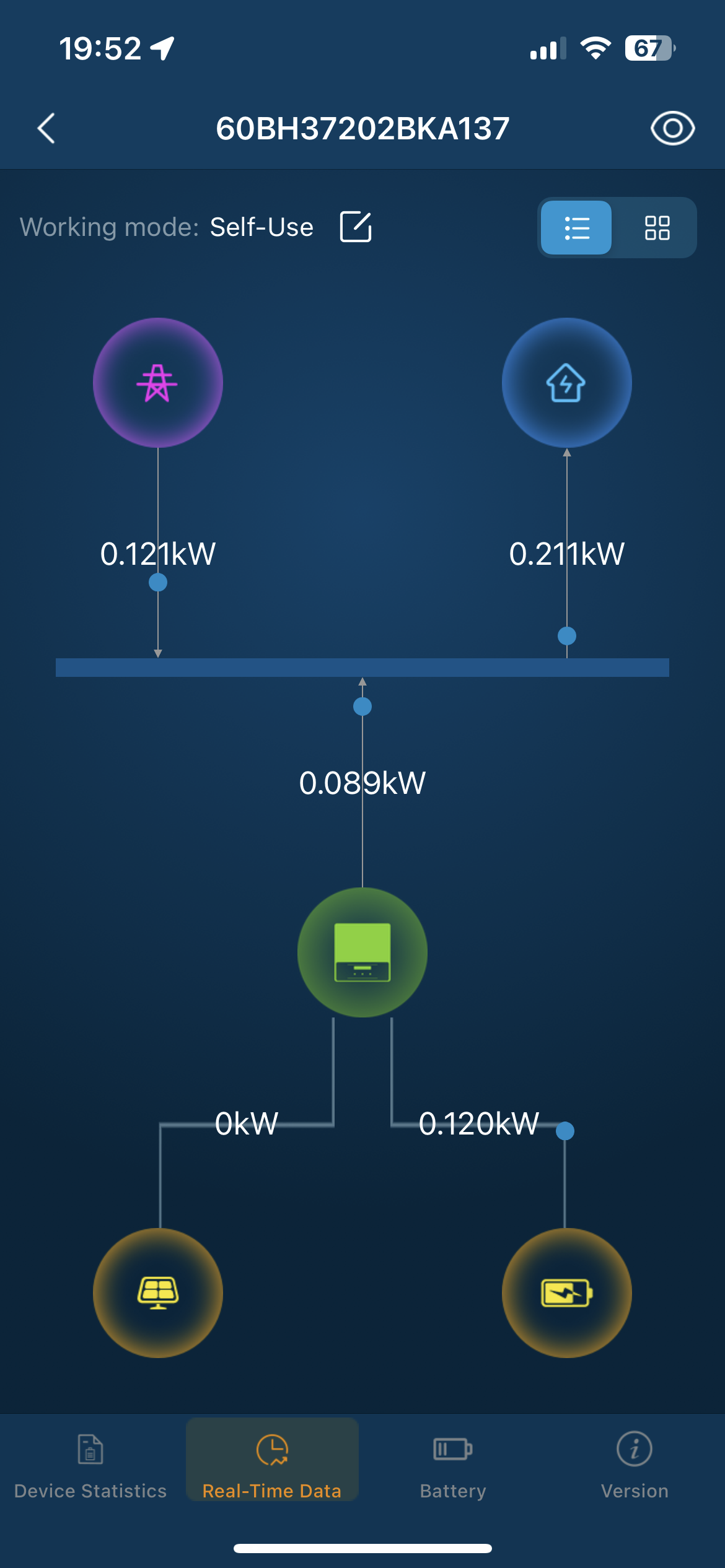

Today the house consumption is going the wrong way and it switches around to sometime look correct. The load and output power seem to mirror each other even when there is no actual load on the system (nothing switched on)

I’ve got a new installation, for the first day the real-time data on the app looked fine. The second day it had a BMS fault (no batteries are installed anyway), the BMS feature had turned back on and the real-time data for grid and consumption looked wrong. The app and online portal shows power g ...
