Hello all, I'm running an H1 Invertor, With Home Assistant hooked up to the MODBUS, And was wondering if there is anything for the Dashboard that will show whether there is a grid Outage and that I am running of the EPS? A simple on/off tally maybe? Just to save me going outside to look at the ATS ...

When using method 1, do we need to add a N-E bonding?
Just testing with a multimeter I can see a PD of ~120V between L-E and ~80V between N-E.

When grid is connected I see the expected 230V between L-E and 0V between N-E.


Did you ever resolve this? I am getting the same issue, I have a N-E ...

Sorry for being dense, I can see the individual cell Temps/voltage on the foxcloud app, but I can't find those sensors in home assistant, how do I know if I have the latest Modbus version, and how do I install it?
I'm very new to HA and not a programmer, but I am very interested in getting as much ...

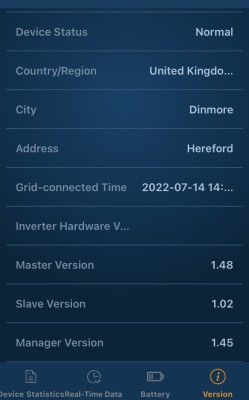

Many thanks, I am running home assistant, but where do I get the latest firmware?
I think I'm on 1.48

Nice one, I'll try that.

I am also trying to find a way to see the individual cell voltages and temperatures.

Is this possible?

TA

Kris

Sorted it, bloody invertor IP had changed by 1. DHCP is now off and that address is reserved.

Hi all, I hope someone can help, the APP went down this morning as I'm sure you are all aware, and Home Assistant lost it's sensor data, but when the app came back online, I still have no sensor data, Ive rebooted HA, and tried editing the cards in dashboard, but the sensors just show a (?) next to ...

Hello all, I am trying to resolve a floating neutral problem when running off-grid, (H1AC1 6kw Inverter and 18kw of HV2600 batteries) I thought that the H1-AC1 had an internal N-E Bonding Relay, (Grounding setting?) but when I disconnect from the grid, I am getting a reading if 100v between N and E ...
