Thanks Dave.

Any update on a resolution for this yet? ES app is extremely flaky and even the Fox app is having a few issues loading data every five mins. It feels as though since they have introduced the API requirement that their servers are not sized correctly to handle the load and they are prioritising Fox a...

Thank you gentlemen! Yes it’s there momentarily before it becomes obfuscated.

Energy Stats is requesting a new API key, however when I generate a new key in the Fox website it is obfuscated so I can’t copy it to Energy Stats.

Any way around this? Thx

Definitely sounds fishy to me. Even in the middle of winter, my 6.24 kWp array with 5 kWp Inverter produced about 350 kWh over January (11 kWh per day), and kept my overall energy bill down by about 3/4 (on Octopus Agile import, fixed 15p kWh export) of what the electricity bill would have been wit...

What battery capacity do you have? What percentage of charge is in the battery when you go to bed?

Trying to understand if you are losing a lot of charge overnight or some charge (which as Dave points out is normal).

Yes, just get a ‘loading’ message.

iOS

Yep.. agree.

It’s since the API Key was needed a few weeks ago.

I’m not sure if it’s related to the API update a few weeks ago but I’m finding that both the Fox v2 app and the Energy Stats app are a little clunky in the connection now. I.e. the data doesn’t always refresh after five mins.. sort of have to go in and out of the apps to refresh it and even then som...

Also just as a quick update, the latest release of the FoxESS V2 app is now (finally) showing total solar (PV Yield) on the ‘plant’ screen (the house picture) at the bottom of the screen. Thanks for the update Dave. Do you know if the Fox value is using realtime data for the new daily PV Yield or i...

I emailed Al and he is aware of the battery flow bug (it’s actually a second bug as it is now showing the flow the other way around) and will release a new version in the morning.

Thanks. Still v2.0 on App Store but will keep an eye out.

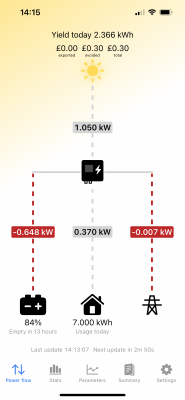

Another screenshot showing same issue:-

I may have found a small bug in the updated Energy Stats app. When the solar is putting power back into the battery the value used to be green. When taking power from the battery the power is depicted as red. Now it appears that the value is depicted as red regardless of topping up or discharging. A...

Updated the Energy Stats app and applied the API key and all working as previously - including the daily PV figure.

As always thanks for the updates Dave. Slightly off topic (or is it?), do you know why the Fox app doesn’t have an accurate daily PV generation value on the Home Screen (like Energy Stats) as it’s probably the single most basic value a user looks for. It seems such an obvious gap in functionality. H...

Completely agree.

It wouldn’t be so bad if Fox provided a good app themselves with the data that users are looking for in a clear and concise manner. But they don’t.

I believe it was just string configuration. I think the optimisers (one in every panel) in the single string of 8 was just not working for whatever reason. To put it into perspective… previous daily PV total yield was approx 1Kwh but usually closer to 0.5-0.7Kwh (using Energy Stats data) for the who...

I owe the community an update on this.

The installer came back and reconfigured the panels as two strings of four and this has made a big improvement. In summary it appears to be resolved now and generation is looking much better!

Could it be an immersion heater on timer that you are not aware of? They are 3Kw per hour so that could easily match the numbers you are seeing.

Thanks Dave. So my amps didn’t exceed 1.0 amps today and 0.7 yesterday. The inspector says that points to an issue somewhere with the circuit (wiring, optimisers) or panel issue.

So if I log on to Fox Cloud I can see that for today the graph for volts is around 300+.

My PV power is between 0.1 and 0.2Kwh

My PV current is between 0.5 - 1.0 amps.

I assume that’s not normal? What do you guys get for amps?

Ha! Good to know they are not checking for nuclear radiation then!

Other thing is that it has been set up as a single string.

Update. So on a positive note the installation company sent an electrical inspector to the house rather than someone from the installation team. The inspector was not satisfied with the quality of the wiring and a few other regulatory issues which he has reported back on so they get remediated. From...

Installers are coming out tomorrow afternoon so I’ll report back! Yes when I say I can see the panels in the sun I am referring to the four on the south elevation. Tomorrow I’ll find out what they have done regarding the string (did they do it as one string etc) and what optimisers I have set up. Wh...
